PINCH 320

Foto

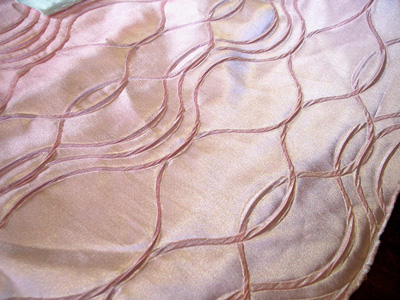

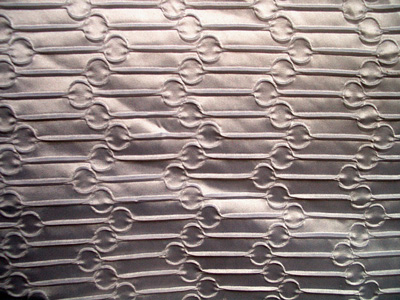

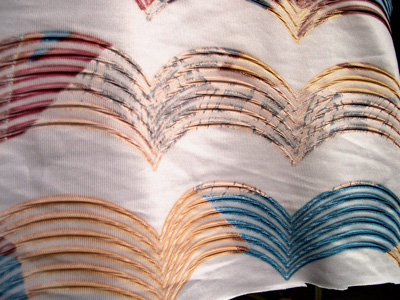

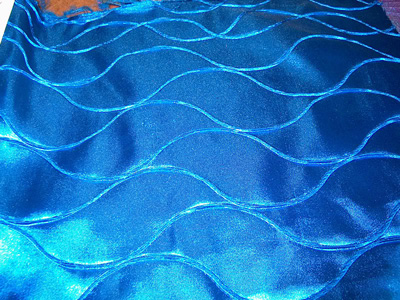

Pinching machine for the production of different raised pleate, obtained by means of dies that can be easily changed. The combination of programs and different dies allow to get varied combinations of design on fabric . The electronic equipment P74 contains of a PC and a cabinet holding the power electronics for the control of the Brushless motors and the heat regulators. Programs created on the PC with colour monitor, are filed on the Harddisk so that they can always be recalled and/or modified. Besides the machine has equipped with a device for the automatic wrapping of the worked fabrics.

TECHNICAL FEATURES
MAIN DRIVE	two Brushless motors.
HEATING	electric resistences controlled by thermoregulators
WORKING WIDTH	mm 3200
PRODUCTION OUTPUT	20 to 100 mt/h approx
TOTAL ABSORPTION	KW 20
COMP AIR.	720LT/min 6 bar
DIMENSION OF THE MACHINE	LENGHT - mm 5040 WIDTH - mm 2000 HEIGHT - mm 2050
NET WEIGHT	5060 Kgs
DIMMENSION OF THE CONTROL UNIT	LENGHT - mm 500 WIDTH - mm 800 HEIGHT - mm 1500
The caratteristics are given purely on an information basis and can be modified at any time without prior notice.
