HARMONY 160

Foto

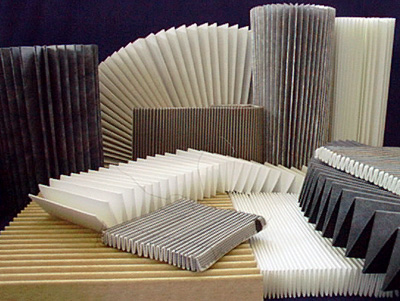

Clemipiega Harmony/160 is a pleating machine especially designed for the production of stand-up pleat. It can pleat papers,polyester,nomex, glass-fibres,Pvc etc. The machine is complete of a quick-charge- device for varying the height of the pleat dramatically reducing the time usually taken by such operations. It is equipped with two Plansthal-steel plates. One flat resistance is placed into each of therm. The resistances raise temperature from 0°C up to 200°C. All moving parts of the machine run on high precision beams; the parallelism of the plates when lifting and lowering is granted by means of linear ball bearings. The counter-pressure –system is controlled by 4 pneumatic pistons complete of a manometer, which controls the back-push of the materials. Harmony/160 has been designed according to high quality materials and components, aiming to a long lasting machine able to grant the same working standard during its whole working life.

SEE THE VIDEO

TECHNICAL FEATURES
MAX WORKING WIDTH THE PLEATING MATERIALS	mm 1600 (modificabile a richiesta).
PLEAT HEIGHT	da mm 5 a mm 50 abt
POWER	KW 6
HEATING	eletric resistencescontrolled by thermoregulators
NET WEIGHT	Kg 1400
SIZE	LENGHT - mm 2710 WIDTH - mm 2610 HEIGHT - mm 1500
The caratteristics are given purely on an information basis and can be modified at any time without prior notice.
