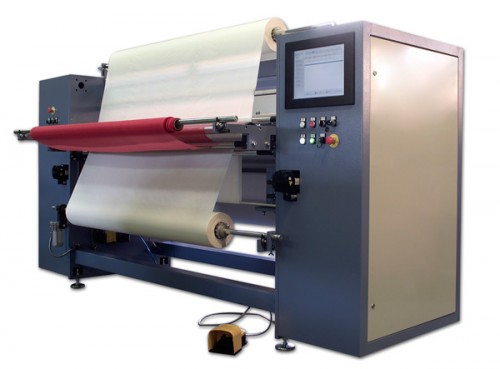

FANTASY 165 EVO

Foto

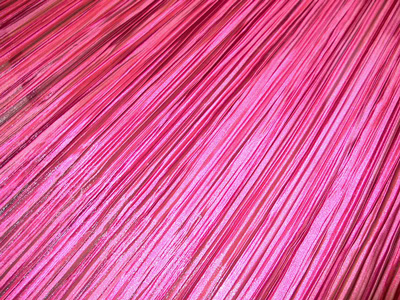

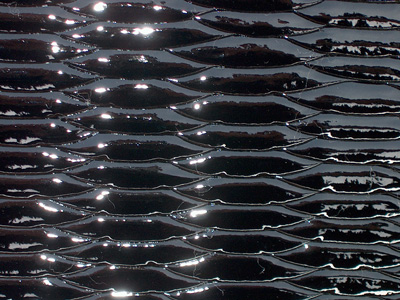

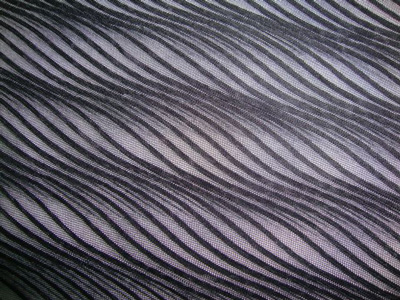

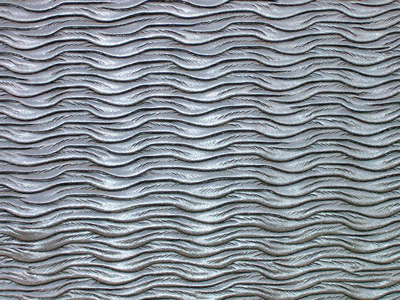

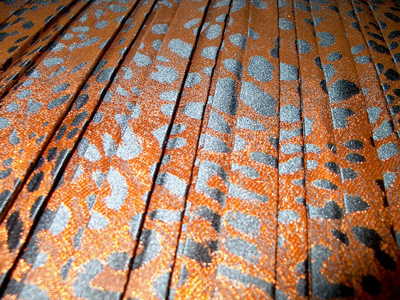

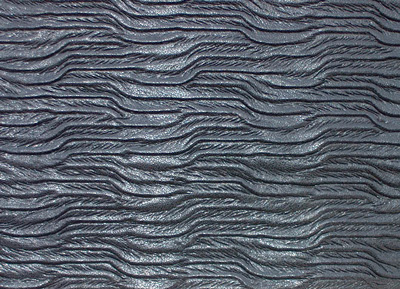

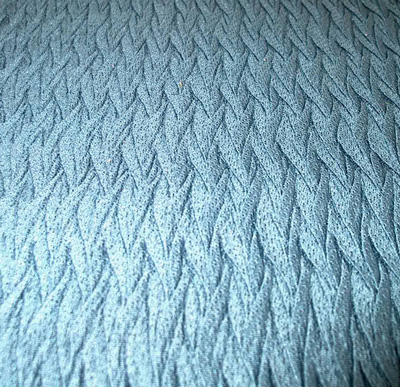

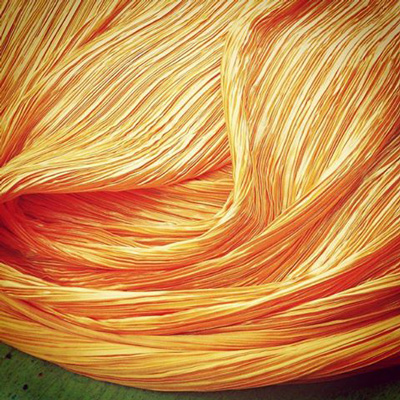

The pleating machine “FANTASY 165-evo” is fully electronics and aimed to the production of flat parallel pleats and fantasy patterns. The peculiar mechanic of its knife allows side and slantwise movements of the knife itself. In this way, many new effects and combinations can be obtained. Thanks to the substitution of the standard knife with other models, which are supplied with different shaped blades.
Every movement of the knifes is obtained by Brushless motors, which make the machine versatile and noiseless. The electronic equipment consist in an industrial PC placed in the electronic cabinet for the control of the five motor axes and the heat regulators.
Programs executed on the PC can be saved to hard-disk so that they can always be recalled and/or modified.
Moreover the programs can be saved on a usb key.

SEE THE VIDEO

TECHNICAL FEATURES
WORKING WIDTH	max 1650 mm. abt
PLEAT DEPTH	from 02 to mm.40
UNPLEATED PART	unlimited
SIDE MOVEMENT OF THE KNIFE	total 50 mm. 25 mm. right hand side 25 mm. left hand side
CURRENT CONSUMPTION	motor 8 KW heating 10 KW
PRODUCTION SPEED	from 40 to 100 meters/hour approx.
PLEATS/MIN	from 10 to 100 approx.
NET WEIGHT OF THE MACHINE	1400 KGS
ELECTRONIC EQUIPMENT SIZE:
MACHINE DIMENSIONS	Lenght 312 cm. Width 175 cm. Height 165 cm.
The caratteristics are given purely on an information basis and can be modified at any time without prior notice.
