DIAMANT

Foto

Pleating machine for the production of any kind of fiat parallel pleats in the width from 2 to 40 mm. Equipped with an electronic control pannel P 33 composed by a lower part containing the power components, a front pannel with switch on and off push botton control and setting, a central unit part composed by a micro-computer with an alpha-numerical keyboard and a video screenplay of 6 inches. This equipment enable the realization of any kind of fiat pleats by rolls of continuous fabric or by single skirts already cutted. The smooth space between on pleat and the other one is automatically controlled too and can be scheduled from a minimum of 2 mm. to an unlimited maximum.



TECHNICAL FEATURES
MAIN DRIVE Electro-magnetic motovariator with speed control, 2 HP, complete with eddy current brake for an operating possibility from about 10 to 120 pleats for minute.
CYLINDERS DRIVE By asynchronous motor, threephase, 0,5 HP with disc brake. Heated electrically by 6 KW resistance in diathermic oilbath. Temperature control scale from 0°-250°C - fluctuation about +/- 5%.
WORKING WIDTH mm 1500
PRODUCTION OUTPUT about 40/120 mts/hour
NET WEIGHT 1100 kgs. included electronic equipment.
SIZE LENGHT - 2450 mm
WIDTH  - 1750 mm
HEIGHT  - 1400 mm
ELECTRONIC EQUIPMENT SIZE: LENGHT - 630 mm
WIDTH  - 570 mm
HEIGHT - 1400 mm
TOTAL ABSORPTION 15 KW ABT
The caratteristics are given purely on an information basis and can be modified at any time without prior notice.

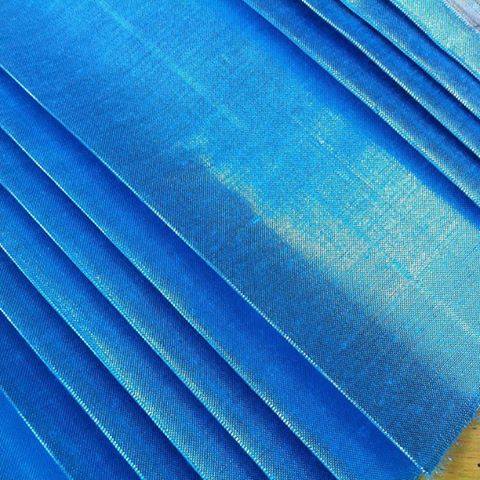

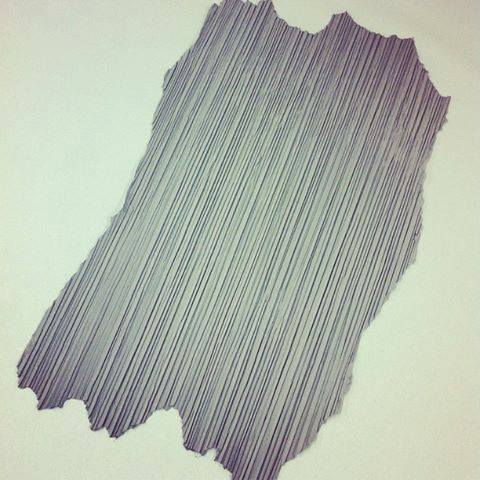

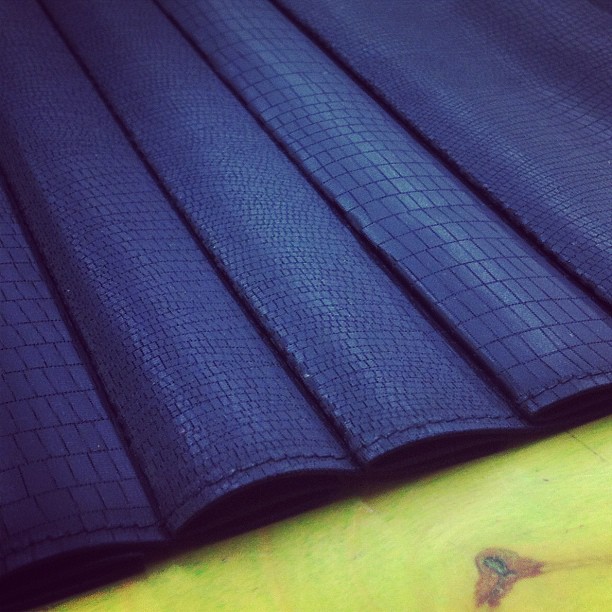

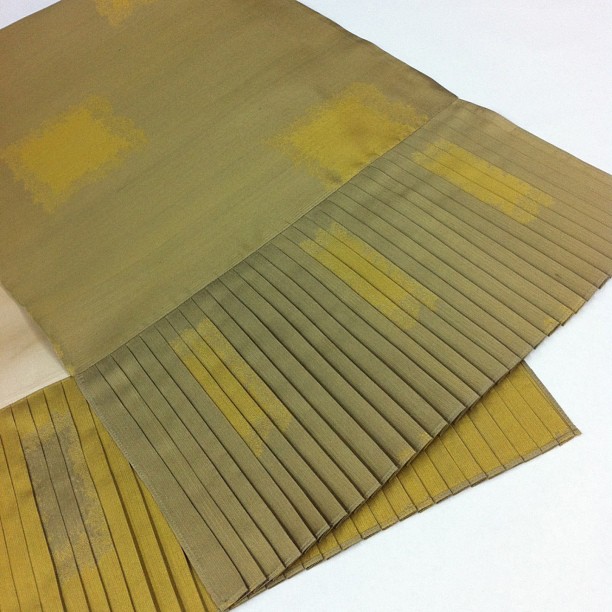

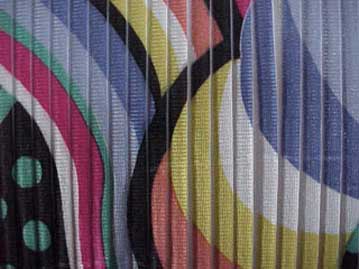

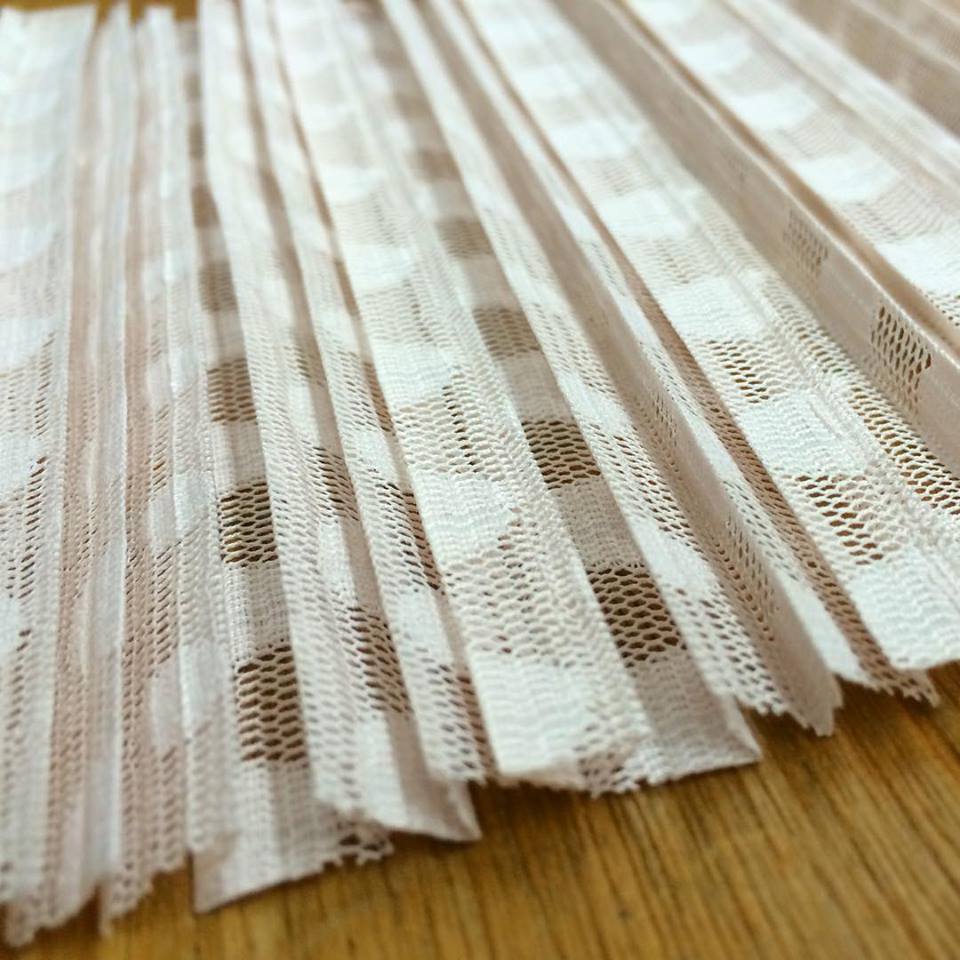

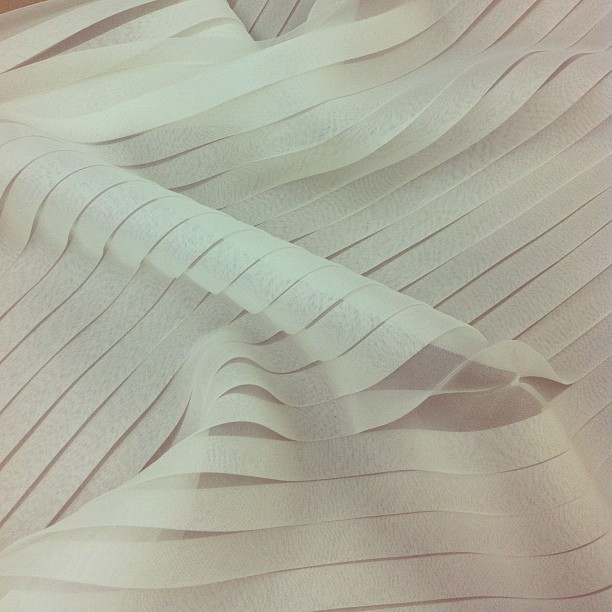

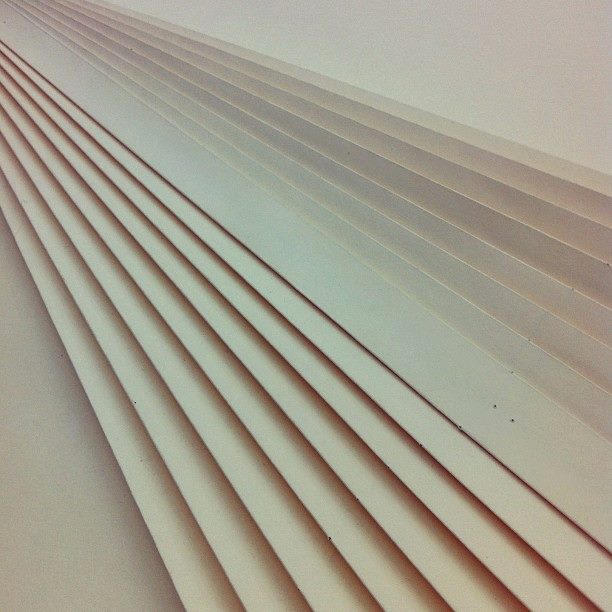

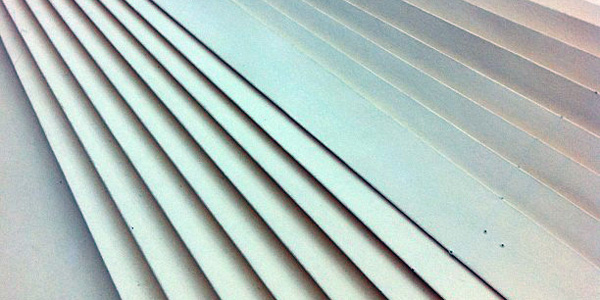

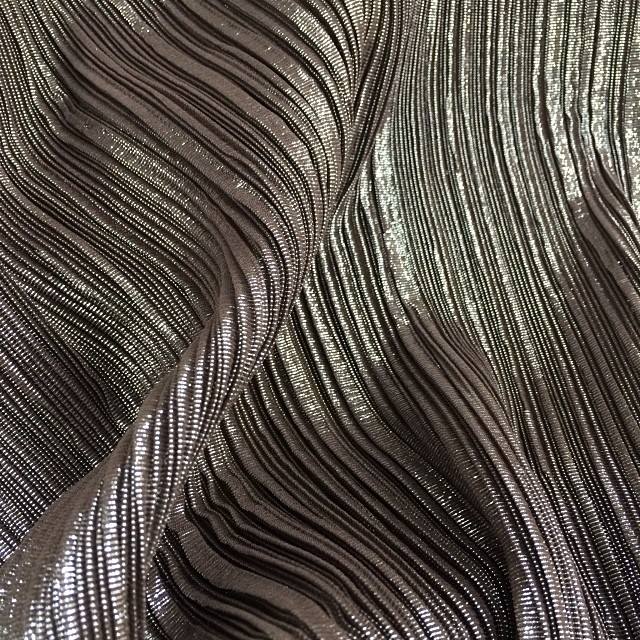

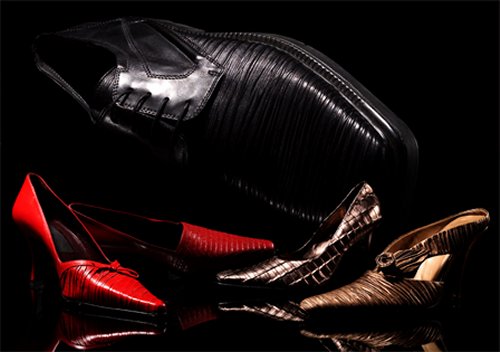

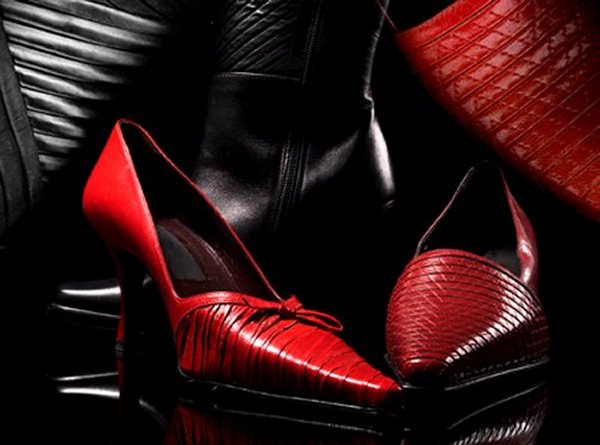

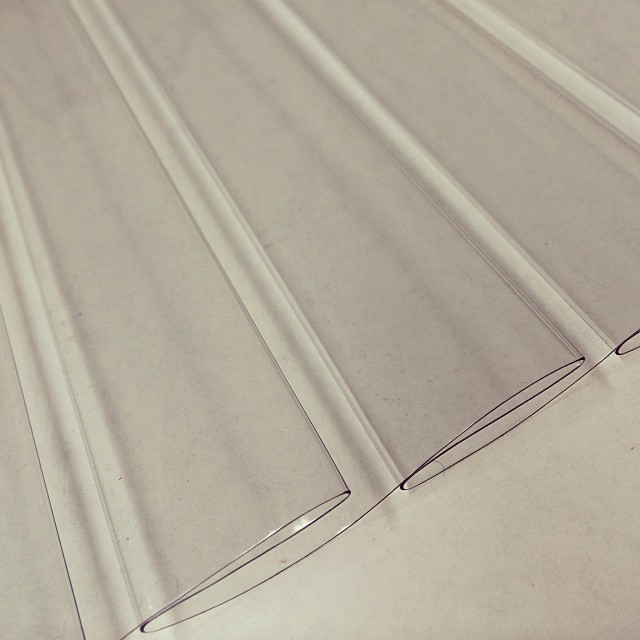

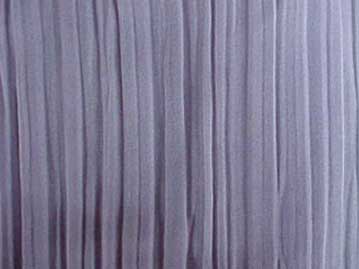

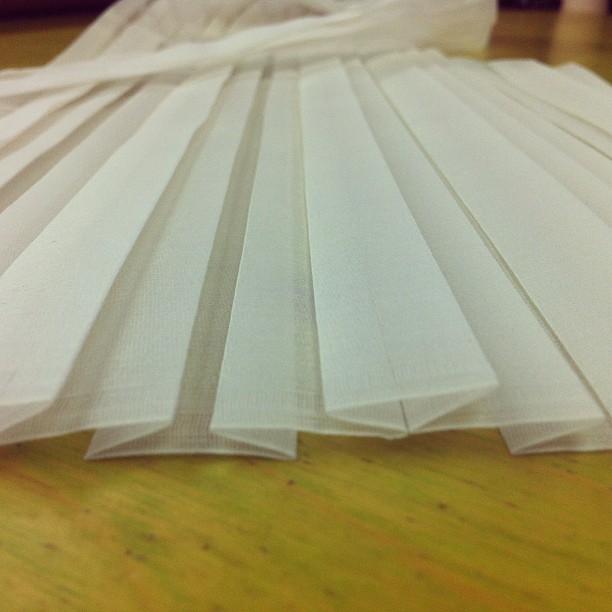

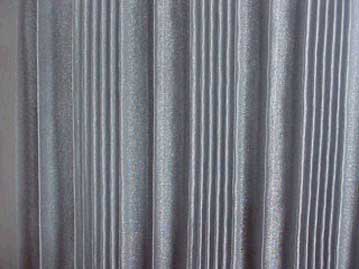

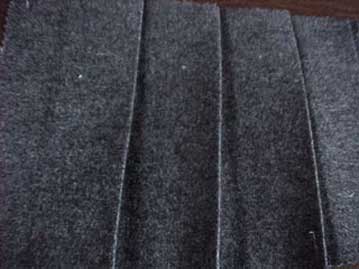

Alcuni campioni realizzabili
con "DIAMANT"
Click on images to open them
